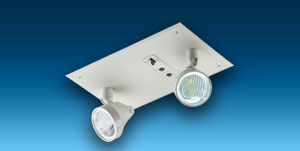

RS Series
Photometric DATA



#IES  Cat. # BULB Isolines PDF CAD isolines feet CAD isolines inches
Trypical spacing 7'
 mounting 6' wide
Typical spacing 15'
 mounting 6' wide
C8952 MR16 head
 MR-16+C 12V 20W 24DEG. GU5.3
 E C8952-7-30 G2.pdf C8952 isoline feet.zip C8952 isoline inches.zip
C8953 MR16 head
 MR-16+C 12V 20W 12DEG. GU5.3
 E C8953-7-30 G2.pdf C8953 isoline feet.zip C8953 isoline inches.zip
C8954 MR16 head
 MR-16+C 12V 12W 24DEG. GU5.3
 E C8954-7-30 G2.pdf C8954 isoline feet.zip C8954 isoline inches.zip
C8955 MR16 head
 MR-16+C 12V 12W 12DEG. GU5.3
 E C8955-7-30 G2.pdf C8955 isoline feet.zip C8955 isoline inches.zip
C9237 CAT. NO. EF9Q-6V8W
6V 8W Halogene  # 785
 9E C237-7-20 G2.pdf C9237 isoline feet.zip C9237 isoline inches.zip
C9238 CAT. NO. EF9Q-6V12W
6V 12W Halogene  # 786
 E C9238-7-30 G2.pdf C9238 isoline feet.zip C9238 isoline inches.zip 27' 18'
C9239 CAT. NO. EF9-6V9W
6V 9W   # 908
 E C9239-7-20 G2.pdf C9239 isoline feet.zip C9239 isoline inches.zip
C9254 CAT. NO. EF9(HB)
6V 8W Halogene  # 785
 E C9254-7-30 G2.pdf C9254 isoline feet.zip C9254 isoline inches.zip
C9255 CAT. NO. EF9(HD)
6V 12W Halogene  # 786
 E C9255-7-30 G2.pdf C9255 isoline feet.zip C9255 isoline inches.zip 24' 17'
C9256 CAT. NO. EF9(ZL)
6V 7.2W   # 927
 E C9256-7-20 G2.pdf C9256 isoline feet.zip C9256 isoline inches.zip
C9257 CAT. NO. EF9(ZD)
6V 9W   # 908
 E C9257-7-20 G2.pdf C9257 isoline feet.zip C9257 isoline inches.zip
C9258 CAT. NO. EF9(HC)
6V 10W Halogene  # 787
 E C9258-7-30 G2.pdf C9258 isoline feet.zip C9258 isoline inches.zip 17' 12'
C9280 CAT. NO. EF9Q-12V8W
12V 8W Halogene # 774
 E C9280-7-25 G2.pdf C9280 isoline feet.zip C9280 isoline inches.zip
C9281 CAT. NO. EF9Q-12V12W
12V 12W Halogene # 783
 E C9281-7-30 G2.pdf C9281 isoline feet.zip C9281 isoline inches.zip
C9282 CAT. NO. EF9-12V18W
12v 18w # 921
 E C9282-7-20 G2.pdf C9282 isoline feet.zip C9282 isoline inches.zip 24' 14'
C9283 CAT. NO. EF9(HF)
12V 8W Halogene # 774
 E C9283-7-20 G2.pdf C9283 isoline feet.zip C9283 isoline inches.zip
C9284 CAT. NO. EF9(HG)
12V 12W Halogene # 783
 E C9284-7-30 G2.pdf C9284 isoline feet.zip C9284 isoline inches.zip 30' 23'
C9285 CAT. NO. EF9(ZF)
12V 9W  # 915
 E C9285-7-20 G2.pdf C9285 isoline feet.zip C9285 isoline inches.zip
C9286 CAT. NO. EF9(ZG)
12V 12W  # 912
 E C9286-7-20 G2.pdf C9286 isoline feet.zip C9286 isoline inches.zip
C9287 CAT. NO. EF9(ZH)
12v 18w # 921
 E C9287-7-30 G2.pdf C9287 isoline feet.zip C9287 isoline inches.zip
C9718 MR16 head  6V 5W MR16 E C9718 7-15 G2.pdf C9718 isoline feet.zip C9718 isoline inches.zip 7' 3'
C9719 MR16 head  6V 6W MR16 E C9719 7-20 G2.pdf C9719 isoline feet.zip C9719 isoline inches.zip 8' 3'
C9720 MR16 head  6V 10W MR16 E C9720 7-30 G2.pdf C9720 isoline feet.zip C9720 isoline inches.zip 16' 14'
C9721 MR16 head
 12V 20W Sylvania
(MA) 580.0075
 E C9721 7-20 G2.pdf C9721 isoline feet.zip C9721 isoline inches.zip 48' 38'
C9724 MR16 head
 12V 20W Sylvania
(MAN) 580.0037
 E C9724 7-30 G2.pdf C9724 isoline feet.zip C9724 isoline inches.zip
C9727 MR16 head
 24V 20W Sylvania
(MD) 580.0077
 E C9727 7-30 G2.pdf C9727 isoline feet.zip C9727 isoline inches.zip 48' 38'
