Photometric Data
ERAU/ERAUR Series
IES FILES
Lamp Part #
BULB SPECIFICATION
Isolines PFD
Cad Feet
Cad inches
Typ. spacing Two lamps 7' mounting 6' wide
Typ. spacing Two lamps 15' mounting 6' wide

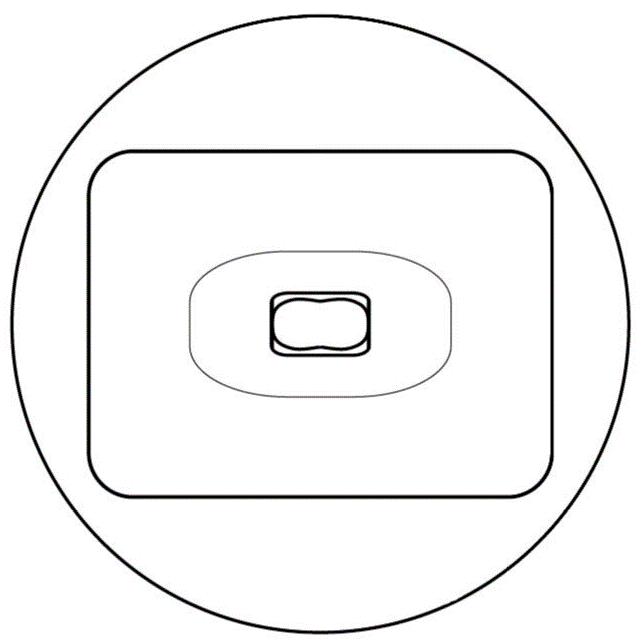

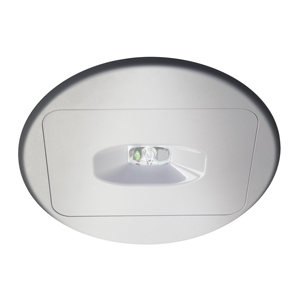

ERAU Series
N/A
LED engine 6W IES Type I
S2007031-R1 9-12.pdf
S2007031-R1 isoline feet.dwg
S2007031-R1 isoline inches.dwg
68'
72'
ERAUR Series
N/A
LED engine 6W IES Type VSD
S2007026-R1 9-12.pdf
S2007026-R1 isoline feet.dwg
S2007026-R1 isoline inches.dwg
-
28'x28' (MH=10')
