Photometric Data

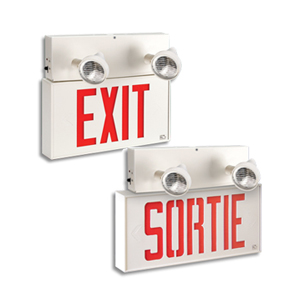

C8SR50-P; LPEX50-P Extruded Aluminum combo



Typical spacing: two lamps centre-to-centre on a 6' wide path and 80-50-20 reflectances for: ceiling, walls and floor.

IES FILES
Lamp Part #
BULB SPECIFICATION
Isolines PFD
Cad Feet
Cad inches
Typ. spacing Two lamps 7' mounting 6' wide
Typ. spacing Two lamps 15' mounting 6' wide
MR16 12v12w E314
580.0080
12V 12W MR16 24DEG.CHF
E314 7-30.pdf
E314 isoline feet.zip
E314 isoline inches.zip
31' 19'
MR16 12v20w E313
580.0075
12V 20W MR16 Aluminum SHG
E313 7-30.pdf
E313 isoline feet.zip
E313 isoline inches.zip
54' 41'
MR16 6v10w 9720
580.0079
6V 10W MR16 CHF
C9720 7-30 G2 7-30.pdf
C9720 isoline feet.zip
C9720 isoline inches.zip
23'
22'
MR16 6v6w 9719
580.0074
6V 6W MR16 JWO
C9719 7-20 G2 7-30.pdf
C9719 isoline feet.zip
C9719 isoline inches.zip
8'
3'
MR16 LED 12v4w H368C
580.0093
12V 4W LED MR16 LDT
H368C 7-30.pdf
H368C isoline feet.zip
H368C isoline inches.zip
55'
43'
MR16 LED 12v5w CF980 580.0104 12V 5W LED MR16 NT
 CF980 7-30.pdf
CF980 isoline feet.zip
CF980 isoline inches.zip
71' 56'
MR16 LED 12v6w G776 580.0106 12V 6W LED MR16 NT
 G776 7-30.pdf
G776 isoline feet.zip
G776 isoline inches.zip
100' 85'
MR16 LED 6v4w H369C 580.0097 6V 4W LED MR16 LDT
H369C 7-30.pdf
H369C isoline feet.zip
H369C isoline inches.zip
43' 36'
PAR18 12v12w H 783 9281
580.0015
12V 12W Halogen # 783
C9281 7-30 G2 7-30.pdf
C9281 isoline feet.zip
C9281 isoline inches.zip
34'
25'
PAR18 12v8w H774 9283
580.0014
12V 8W Halogen # 774
C9283-7-20 G2 7-30.pdf
C9283 isoline feet.zip
C9283 isoline inches.zip
23'
15'
PAR18 12v9w T 915 9285
570.0025
12V 9W  # 915
C9285-7-20 G2 7-30.pdf
C9285 isoline feet.zip
C9285 isoline inches.zip
18'
11'
PAR18 6v12w H 786 9255
580.0011
6V 12W Halogen # 786
C9255-7-30 G2.pdf
C9255 isoline feet.zip
C9255 isoline inches.zip
24'
17'
PAR18 6v8w H 785 9237
580.0013
6V 8W Halogen  # 785
C9237-7-20 G2.pdf
C9237 isoline feet.zip
C9237 isoline inches.zip
21'
14'
PAR18 6v9w T908 9239
570.0016
6V 9W   # 908
C9239-7-20 G2.pdf
C9239 isoline feet.zip
C9239 isoline inches.zip
17'
11'
